replacements for fossil fuels—what can be done about it?

briefing document

site map

This document assesses the scale of fossil-fuel-replacement options other than nuclear power. Nuclear power is discussed with in Is nuclear power really really dangerous? Nuclear power is the only current technology that can fully meet the issues raised in Replacing fossil fuels—the scale of the problem.

Current reserves of pumpable oil are reckoned to be about one trillion barrels, another trillion barrels is estimated to be in shale and tar sands.
A further 10 trillion tonnes oil equivalent are estimated as available as coal reserves.
[7.2 barrels is approximately one metric tonne, it varies with oil density.]

How much will this cost?

From the table above and the electricity usage and derivation table, the USA will probably need to decide to generate seven times as much electricity as at present (that is eight times the present amount, minus the generating capacity we already have in place). You will see from the electricity usage and derivation table that the in-place capital generating plant of the USA is equivalent to 430 big power stations and, therefore, is worth about $430 billion. Seven times this figure, the price of the new plant required, is approximately $3 trillion.

Now a power station may, at present, be expected to last approximately thirty years. Taking both our $430 billion and our $3 trillion, we are referring to a total of $3.5 trillion of plant, and replacing one-thirtieth of this each year, that is somewhat over $100 billion each and every year.

The American economy runs at about $10 trillion a year, and growing. $100 billion is about one percent of the US GNP year in, year out. As can be seen, this is a very large project, but perfectly do-able.

To emphasise the scale of this, it means, for example, the United States building 100 nuclear power stations each and every year, or Britain building ten each year. It has been recently announced (2003) that Germany intends to build the equivalent of 25 power stations, using wind power, by 2030. This is approximately half their present electricity generating capacity. For Germany to reach the level that I am estimating, would require the Germans to add approximately that capacity each and every year, not just once over 27 years. As you will see, this is no trivial project. You may work out similar figures for your own economy, by reference to the Fuel usage efficiency table.

Remember, this is somewhat of a theoretical calculation. For example, we could make our power stations last for 40 years, and it is doubtful that we will attempt to replace all our transportable oil equivalent through electrical fabrication, but again I remind you that my purpose is to enable you to grasp the scale of the problems.

The delivery of power

In a Western economy, about 15% of usable power is delivered in the form of electricity, but that delivered power takes about 40% of the total power used by an economy to generate the electricity. The remaining 60% is shared between transport and various heating requirements.

To supply the 30% required for heating, using electricity, would require twice the current electricity generating capacity presently in place.

To produce a transportable fuel from electricity would probably take three or four times the electric power to produce a given amount of fuel.[1] Thus, assuming that 30% of fuel is in a transportable form such as methane, a generating capacity of something like six to eight times the present level of electricity generation would be required just to produce the transportable fuel.

Assuming that the lower factor of three times can be met, with improving technology and large-scale efficiencies, and all power passing through an electrical stage, it will be seen that a Western society would be looking at eight to ten times present electrical generating capacity in order to meet its present consumption desires.

Naturally, some of this processing need not go through an electrical stage, but my whole intention is to accustom people to the scale of the problem posed by depleting fossil fuels.

It is also clear that much can be done in improving energy efficiencies by insulation, and by better buildings and engineering design. Also, much is possible in rearranging our lives and working practices. Meanwhile, material and biotech sciences are racing ahead at such a pace that it is very difficult to guess at the relevant advances and contributions that these sciences will produce.

Further, at least five-sixths of the world population presently comes nowhere near Western standards of living.

advertising
disclaimer

advertising
disclaimer

Integrated power

Now thus far, I have been discussing the power needs for the future and relating that to the concept of a ‘big power station’. However, while we have a mixed power system including pumped oil and other fossil fuels, electricity production involves some inherent weaknesses.

Using the United Kingdom as an example, the electricity produced amounts to the output of around 42 big power stations, but you will recall from Replacing fossil fuels—the scale of the problem there is variation of demand (and there are downtimes). So, to keep people on line requires more than the number of stations allowed for in the supply calculations (in Replacing fossil fuels), quite a lot more stations. In the UK, the peak demand runs at around 60 big power stations.

There is yet more. The installed capacity in the UK is approaching 80 power stations! The difference between peak load plus down time for repairs and the installed capacity is known as overbuild. This overbuild becomes an even bigger problem when attempting to integrate wind power into a electricity grid supply system. In Denmark, peak capacity is about 3.7 big power stations, whereas installed capacity is approaching 7 big power stations. And still the Danish electricity system has to rely on links to the rest of Scandinavia and to Germany. For details.

The situation is likely to change radically once power stations become a source of storable fuel, such as methane or even perhaps hydrogen. At that point, power stations will not tend to lie idle during off-peak times (note that is around one third of potential production), nor will any overbuild need to lie idle. The system will be smoothed by production of transportable fuel. This production has another advantage in that remote sites are no embarrassment, as the transportation of liquid fuel will not require a considerable infrastructure to transport electricity from those remote sites. Much cheaper methods like road transport will be available.

See here for proposed nuclear-hydrolysis technology.

This technology is based on a hydrogen model, which has yet to convince that it is viable despite optimistic noises from politicians and government grant receiving car manufacturers. The authors claim that producing hydrogen by electrolysis is around 85% efficient. They also claim that more hydrogen can be produced by sensible reactor design, by using otherwise waste heat to force the disassociation of water into hydrogen and oxygen. This second process is expected to yield efficiencies in the range of 40-50% much lower than electrolysis, but still a tremendous potential bonus.

Methods of methane production from water and air using electric power are said to be approximately 38% efficient at the present time (see several papers by Specht et al. for further details).

Notes for development:
table required comparing transportable amounts of petrol, diesel, methane and hydrogen....perhaps others.... energy costs to produce....energy content of fuel....bulk.... blank at present...figure to follow.

Options

Microgeneration and conservation

The future of energy production will probably involve local community and individual household generation. This is not an either/or situation. Systems will be range from very large and central distribution to the very local systems for personal use and efficiency, including conservation.

See distributed energy systems and micro-generation.

Methane hydrates

I have seen it quoted that there are 10 trillion tonnes of natural methane hydrates in the shallow seas around the world. That is, approximately 70 trillion barrels. Clearly, this is a major potential resource.

Hydrate:

a compound containing water in the form of HO molecules. The best known hydrates are crystalline solids that lose their fundamental structures upon removal of the bound water.

Examples of hydrates are: washing soda (sodium carbonate decahydrate; Na CO 10HO), borax (sodium tetraborate decahydrate; Na BO 10H O), and also blue vitriol (copper sulphate pentahydrate; CuSO 5HO).

A number of gases, notably the noble gases and simple hydrocarbon gases, form crystalline hydrates, called clathrate compounds, at relatively low temperatures and pressures. A clathrate is a solid in which one component is enclosed in the structure of another.
Clathrate crystals have a structure in which the water molecules form a loosely held framework surrounding the gas molecule.

“Hydrate research entered a second phase in the 1930s, when E.G. Hammerschmidt determined that hydrate was responsible for plugging natural gas pipelines, particularly those located in cold environments. For the next 40 years, a small body of researchers investigated the physics of various clathrates, including the construction of the first predictive models of their formation. A prime focus of this work was (and continues to be) the development of chemical additives and other methods to inhibit hydrate formation.”

“Methane hydrate is the most abundant natural form of clathrate, a unique class of chemical substance in which molecules of one material (in this case, water) form an open solid lattice that encloses, without chemical bonding, appropriately-sized molecules of another material (in this case, methane).

Also ...

“... the U.S. Geological Survey estimates that methane hydrate may, in fact, contain more organic carbon than all the world's coal, oil, and non-hydrate natural gas combined. The magnitude of this previously unknown global storehouse of methane is truly staggering and has raised serious inquiry into the possibility of using methane hydrate as a source of energy.”

lake bottom methane
Lake Kivu, on Rwanda’s north-western border:

“the methane comes from lake bed bacteria.”

“The gas reserve should be enough to supply the country's electricity needs for 400 years.”

attempts to clean up coal

reasonable summary of present coal generation problems
The claimed proven reserves figures look highly over optimistic to me [see also Energy economics—how long do we have?]

This document is also recommended:

“Despite the improving efficiency of coal-fired power stations, carbon dioxide emissions remain a problem. A range of approaches of carbon capture and storage (CCS) have been developed and have proved to be technically feasible.

“They have yet to be made available on a large-scale commercial basis because of the costs involved.”

us futuregen clean coal project agreed

The report cited below looks rather optimistic, and maybe even muddled at present, but it is useful research. The project is, in fact, very small in terms of US future energy requirements, and will be very costly relative to current generating plant. As you may realise, I am also very unconvinced by ‘the hydrogen economy’ regularly being touted by the Bush advertising machine. Therefore, treat this section with caution.

Coal is a considerable potential resource, but is presently inherently filthy. This proposed project is a step towards attempting to alter that situation.

“The Integrated Sequestration and Hydrogen Research Initiative is a $1 billion government/industry partnership to design, build and operate a nearly emission-free, coal-fired electric and hydrogen production plant. The 275-megawatt prototype plant will serve as a large scale engineering laboratory for testing new clean power, carbon capture, and coal-to-hydrogen technologies. It will be the cleanest fossil fuel-fired power plant in the world." [Quoted from fossil.energy.gov - .pdf format]

“The FutureGen Industrial Alliance, including big utilities like American Electric Power Co. and Southern Co. and coal producers like Peabody Energy, have signed a deal with the Energy Department to build the 275-megawatt plant, worth $950 million.”
—
“ Other US partners are Consol Energy Inc., Foundation Coal Holdings and
Kennecott Energy.

“International partners are China Huaneng Group, China's biggest coal producer, and mining and energy group BHP Billiton Ltd./Plc., the world's biggest mining company headquartered in Melbourne, Australia.” [Quoted from planetark.org]

Note the growing co-operation that is being built by the USA with the obvious intent on spreading leading edge technology to developing countries. A rational approach to Kyoto-type objectives.

This next article has a typically foolish heading and spin that could only be written by people who do not understand the United States and the American approach to government.

“While US President George W. Bush refuses to accept the Kyoto Protocol to cut greenhouse gas emissions, at least 40 million Americans will find themselves bound to the international treaty to curb global warming.

“Since the protocol took effect last February, Seattle Mayor Greg Nickels has convinced 192 cities to agree to cut emissions 7 percent from 1990 levels by 2012 - the recommended target for the United States, which emits 25 percent of the world's heat-trapping gases.”
—
“California's Republican Gov. Arnold Schwarzenegger has won environmentalists' praise at the conference with progress on his ambitious plan to reduce greenhouse gases in the nation's most populous state 80 percent from 1990 levels by 2050.” [Quoted from planetark.org]

California, if treated as independent of the USA, would be one of the world’s leading economies all on its lonesome! The silly sideswipes at George Bush primarily indicate ignorance on the part of the writer.

A useful general survey of current projects (2004) [.pdf format - 19 pages]
Note the small scale compared with the billions of tonnes surplus currently being produced.

related material
energy economics

in-situ coal gasification

The world’s gas system was originally designed for gas from coal.

This technology appears to have considerable potential as a means of using coal with lessened pollution problems.

Thus far, it seems to concentrate on exhausted pits and be of modest scale. Coal gasification is useful, though, for coal occurring at below profitably mineable depths. A helpful addition to the armoury during transition to the post-fossil fuel economy.

Current worldwide explorative projects.

A short, reasonably clear, summary of the state of play.

(Site reference from Mel Rowing.)

Tidal and wave power

There are essentially two ways off extracting power from the movement of the seas:

1. using wave action (primarily caused by winds) and, therefore, not fully reliable;
2. using the movement of the tides which, although it varies, is regular and reliable.

Both methods are described in this FAQ.
Using ocean currents has also been discussed, but looks highly dubious to me. Such currents tend to be seasonal and their position unreliable.

This is a description of the La Rance Tidal Barrage in France.

A new offshore system is under way off the Devon coast in southern England.

“Martin Wright, of Marine Current Turbines Ltd, said: "We estimate that there is at least 10 gigawatts of power available from tidal power in the UK.

“"That's the same as about half of the existing nuclear industry." ”

That is to say, only around 1/10th of the present electricity usage of the United Kingdom, or about 10 large power stations. This looks like a low estimation to me, but I am no engineer. These sea-oriented methods are not discussed in the much quoted Pimentel assessment.

As the article on the English offshore system states

“Its backers believe the concept can become a rival to wind power because ocean currents are more reliable than wind and also because they are less obtrusive; the structure is built on the seabed and projects just a few metres above the surface.”

Another wave generator design

The item headline is “the world's first commercial wave power station is going into action in Scotland”, but no actual start date is given.

The generator is quoted as designed for 1/2 megawatt, but again details are not given. Windmills are now moving towards 3 megawatts and higher, this design also relies on air pressure.

Non-rigid tidal generator method

links from Alan G and James Hammerton

Wind

Pimentel reckons that wind power could be expanded in the United States to produce the equivalent of 230 big power stations, which would take up approximately 8 million hectares. My untutored guess is this may well be a considerable under-estimate, as windmills are developed, enlarged in capacity, and may be mounted ever higher in order to reach more powerful winds, or ganged more than one to a pillar, or built out to sea. Whether such development would affect weather conditions, I do not yet know enough to guess.

the increasing return of the age of the windmill

“Last year, enough wind energy came online in the United States to power roughly a half million homes. Next year, that number is expected to climb by another 100,000.”
—
“For the past five years, it's grown by about 30 percent a year worldwide. In Denmark, it now accounts for some 15 percent of all energy use.

The figure quoted for Denmark is an error, one commonly made. The figure should read, “15% of electricity production”, which is about 5% of Denmark’s energy inputs.

the wind in spain

“Spain, one of the windiest countries in Europe, currently gains around 3 percent of its electricity from wind power and is the second largest European producer of this form of energy and the third largest in the world.

“It expects its current installed generation capacity of 4,100 megawatts from wind power to increase to 8,900 megawatts by 2010.”

Wind power FAQs

A 30-page PDF document provides basic information on wind power generation. The document includes photographs, diagrams and tables.

And here is an excellent critique of wind power
However, the page has bad html and a long download when accessed on slow links.

Biofuel

Current biofuels are heavily subsidised and often EROEI-uneconomic. Much of the process is fossil fuel-driven, such as farm machinery, fertiliser, herbicides, insecticides and refining. Agriculture is heavuly dependant on water supply and sunlight. Biofuels are no easy option.

yet more bad science from the pseudo-greens

“The rush to make energy from vegetable oils is being driven in part by European Union laws requiring conventional fuels to be blended with biofuels, and by subsidies equivalent to 20 pence a litre. Last week, the British government announced a target for biofuels to make up 5 per cent of transport fuels by 2010. The aim is to help meet Kyoto protocol targets for reducing greenhouse-gas emissions.

“Rising demand for green energy has led to a surge in the international price of palm oil, with potentially damaging consequences. "The expansion of palm oil production is one of the leading causes of rainforest destruction in south-east Asia. It is one of the most environmentally damaging commodities on the planet," says Simon Counsell, director of the UK-based Rainforest Foundation [...].”
—
“ The main alternative to palm oil is soybean oil. But soya is the largest single cause of rainforest destruction in the Brazilian Amazon.”

Note, sugar cane is also an importment biofuel crop, especially in Brazil.

useful, but unreliable, summary on oil from algae

The item is rather casual about the problems of salination and inputs. Obviously, it will require a lot of power to run the system and access to feedstocks, but it is an very interesting approach.

Advised reading, with caution.

This link is to a more detailed and careful survey, linked from the above document. However, it is a 328-page .pdf file. Because I am still attempting to read through the .pdf, this abelard.org biofuel item should be treated as ‘in development’. For instance, read from p. 255 and you will receive a much less rosy picture than from the short item

Algae can grow in saline water, thus not displacing useful farm land.

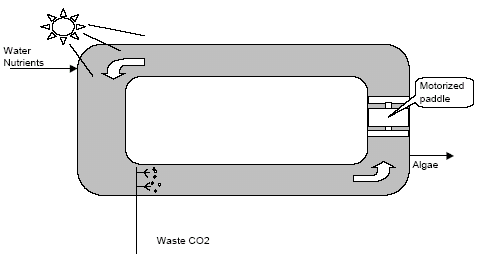

“Microalgae are the most primitive form of plants. While the mechanism of photosynthesis in microalgae is similar to that of higher plants, they are generally more efficient converters of solar energy because of their simple cellular structure. In addition, because the cells grow in aqueous suspension, they have more efficient access to water, CO2, and other nutrients. For these reasons, microalgae are capable of producing 30 times the amount oil per unit area of land, compared to terrestrial oilseed crops.” [.pdf page 9]

hydroelectric

This is one of the most efficient power sources available. Naturally, must of the available source is, therefore, already exploited.

There are ecological problems such as silting and free river flow.

More direct solar methods

Photovoltaic cells

Photovoltiac cells are also known as solar cells.

They are a means of harnessing the sun’s energy and converting it into electricity. Photons from the sun are absorbed by semi-conductors, with electrons being knocked along electrical wires by the photons until the current (flow of electrons) reaches a device that can be powered by electricity.

This is known as the photovoltaic effect, and was first noticed in 1839. It works in a similar way to the current flow is handled in computer logic and memory chips.

Solar power from photovoltiac cells has been used since the 1950s, at first for devices where providing other sources of power was a problem, such as with satellites, remote small dwellings and motorway phone boxes. The technology has improved sufficiently that solar cells are now a feasible option for private and business buildings, providing an alternative power source in case of power failures.

The sun is an enormous source of energy, bombarding the Earth each minute with enough energy to supply the Earth’s power needs for a year.

Crystalline silicone-based photovoltaic cells will convert 15% of the sun’s energy to electricity, while newer, cheaper materials such as amorphous silicon and gallium arsenide convert 8% of the sun’s energy, thus being half as efficient as silicon-based cells.

Because the manufacturing costs of photovoltaic cells are still relatively high, solar power is as much as five times more expensive than power derived from fossil fuels. However, photovoltaic technology is changing rapidly.and new research could lead to significant cost reductions within a few years. These advances could be both by making cheaper versions of rigid crystalline silicon cells (which comprise 80% of the solar market), and by creating less expensive flexible photovoltaic technologies that are as reliable and as efficient as crystalline silicon, using, for instance, amorphous silicon and gallium arsenide.

Crystalline silicone comprises approximately 40% the price of photo-voltaic cells, therefore even halving the price of the silicone would improve the cost down from five times to four times that of fossil fuels. You will, therefore, see that there is still a long way to go before photo-voltaic cells will move into serious consideration for major power production.

capturing more solar energy

“Researchers from Lawrence Berkeley National Laboratory, the University of California, and the Massachusetts Institute of Technology have engineered a single material that contains three bandgaps and is capable of capturing more than 50 percent of the sun's energy. The researchers made the material by forcing oxygen into a zinc-manganese-tellurium crystal. The oxygen split the crystal's band gap and formed a third one of its own.

“The material could lead to relatively inexpensive, highly-efficient solar cells that would be much simpler to make than today's high-end multijunction solar cells.”

And in the real world now:

in a small way, germany starts acting for substitute energy production
Scan recommended.

Solar panel park. Image credit: powerlight.com

“PowerLight's three Bavarian solar parks, consisting of 57,600 silicon-and- aluminum panels, will generate 10 megawatts of electricity -- enough to power 9,000 German homes. The amount of electricity produced is much less than power plants fueled by coal or natural gas, but with very low operating costs, the solar project is expected quickly to turn a profit while emitting zero pollution. Schroeder's left-of-center Social Democrat-Green coalition has turned Germany into the world leader in renewable energy since it took office in 1998. Billions of dollars have been spent on wind and solar projects, and Schroeder, in a politically risky move, has sharply increased taxes on petroleum products in an attempt to reduce consumption of conventional fuels.

“The campaign accelerated a year ago when Germany enacted a law forcing electric utility companies -- and, ultimately, all electricity users -- to pay higher rates to businesses or individuals who generate solar or wind energy and feed it back into the grid. With this guarantee of revenue, solar panels have become commonplace on new German houses and huge new windmills are a typical sight in rural areas, especially in the more windy north.”
—
“ A law that has been in effect for a year stipulates that the nation's electric utility companies must buy all wind and solar power generated by residential, commercial and industrial users at a price 10 times higher than the rate that users are charged for the electricity provided by the utilities from coal, nuclear or natural gas plants.

“Enticed by the guarantee of selling electricity at 46 euro cents (about 62 U.S. cents) per kilowatt hour for the next 20 years, as stipulated by the new rule, Berkeley's PowerLight Corp. needed no further prompting. CEO Dinwoodie went to a large investment bank in Frankfurt, Deutsche Structured Finance, and got a $65 million investment..”
—
“Under California utility regulations, by contrast, users are only able to draw their bills down to zero, with no profit possible. As a result, solar installations are small and large commercial facilities like PowerLight's Muhlhausen farm are impossible.”

More details of the bavaria project [PDF]

Powerlight’s website has a large range of useful background information, with various case studies. This includes a simple informative case study presented as a PDF with photos.

related material
energy microgeneration

solar thermal collectors

A miniaturised rooftop device appears to be nearing production [2005].

Note that this is a hybrid system that combines both photo-voltaic with solar concentration.

“[...] a powerful ally. One that never sends a fuel bill and self-stores waste. That's 93 million miles from anyone's backyard, and now in its sixth billennium of trouble-free operation.”

“Then, in a weekend flash of inspiration, a young Caltech physics grad named Kevin Hickerson figured out how to reduce the number of motors needed to move 25 mirrors independently, a major cost factor. Instead of two motors for each mirror - the traditional approach - Hickerson's solution requires only two motors for any number of mirrors. The key is a mathematical curve known as the conchoid of Nicomedes (named for the ancient Greek mathematician, who discovered it). A grid of ball bearings arrayed to match the conchoid is attached to a frame inside the Sunflower. As the motors move the frame, the bearings control each mirror's position individually.”

Solar concentrator and receiver. Image credit: Energy Innovations, Inc.

“Gross hopes to push the price down another 20 percent within two years as manufacturing scale and more efficient silicon kick in. His focus is the metric nearest the hearts of penny-counting CFOs and facilities managers who rule all those endless miles of sprawling rooftops: payback period. "Right now, PV solar has a 20-year payback, but people are still buying it," he says. "Our target for California is five. In Phoenix we could do 3.3."

Of course, those alluring numbers hide a little secret: Take away rebates and other incentives, and payback periods pretty much double. The hard reality is that, even on the rooftop, even with concentrated sunlight, even with low-cost Chinese manufacturing, unrebated solar kilowatt-hours cost too much for the mainstream energy market. Gross is bold enough to think the Sunflower has a shot at competing straight up with the utility companies, and certainly sooner than the 20-year forecast for PV panels. But for now, he'd rather not have to find out. "Losing rebates would be devastating to all of us," he says. "This is still a very young industry." [Quoted from wired.com]

Energy Innovation Inc. website.

See also Distributed energy systems and micro-generation

end notes

1. Allowing for some mass production and increased efficiency (also see here).


2. Present electricity generating capacity delivers the equivalent of 15% of the total primary power inputs at the point of use. We need to use the delivered electricity as inputs to replace the transport and heating primary inputs that currently come from fossil fuels.

   In other words, that 15% delivered can be used to calculate the required primary inputs if supplied by electricity. Thus to make the 30% of current primary inputs used for transport, you would need 2 times the present electricity generating capacity. To make the 30% of currently primary inputs used for heating, you would need another 2 times the present electricity generating capacity.

   However, producing a transportable fuel (for instance, methane) from electricity is 3 – 4 times less efficient than using the fossil fuels, so to go that route you would need 3 – 4 times as much electricity input as you would need in the idealised situation above. That is, 3 – 4 lots of that 2 times given above, which calculates to 6 – 8 times the present electricity generating capacity.

   Heating using electricity is, in fact, just as efficient as heating using fossil fuels. This means you need the same electricity input as in the idealised situation above. That is, 1 lot of the 2 times above, or just 2 times the present electricity generating capacity!


3. “US energy conservation and efficiency benefits and costs”, D. Pimentel et al., in Environment, Development and Sustainability 6: pp 279-305, 2004, Kluwer Academic Publishers.
